X1G005601018200為何OSC晶振能成為無線模塊應用的甄選?愛普生公司的閃光點總是能夠輕易被用戶快速捕捉到，隨著自身能力的不斷增強，所生產出來的產品呈現出完美狀態，經過自身不斷用心鉆研，生產出來的SMD晶振產品獲得廣大用戶的認可，并針對用戶的需求開發更多優質的產品線，同時也迎來了許多的機會，這是愛普生公司一路的成長故事，正是因?yàn)橛辛四切└矣诳朔煺鄣臅r(shí)刻，才顯得如此熠熠生輝。

Product Number	愛普生晶振	Frequency	LxWxH	Output Wave	Supply Voltage	Ope Temperature	Freq. Tol.
X1G005601017400	SG-8018CG	33.500000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017500	SG-8018CG	3.570000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017600	SG-8018CG	8.037500 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017700	SG-8018CG	80.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601017800	SG-8018CG	35.890700 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018000	SG-8018CG	72.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018100	SG-8018CG	72.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018200	SG-8018CG	75.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018300	SG-8018CG	75.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018400	SG-8018CG	49.152000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018500	SG-8018CG	98.304000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018600	SG-8018CG	98.304000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018700	SG-8018CG	37.125000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018800	SG-8018CG	33.330000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601018900	SG-8018CG	33.330000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019000	SG-8018CG	18.432000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019100	SG-8018CG	18.432000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019200	SG-8018CG	7.000000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019300	SG-8018CG	8.727000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019400	SG-8018CG	21.606000 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm
X1G005601019500	SG-8018CG	39.321600 MHz	2.50 x 2.00 x 0.80 mm	CMOS	1.620 to 3.630 V	-40 to 105 °C	+/-50 ppm

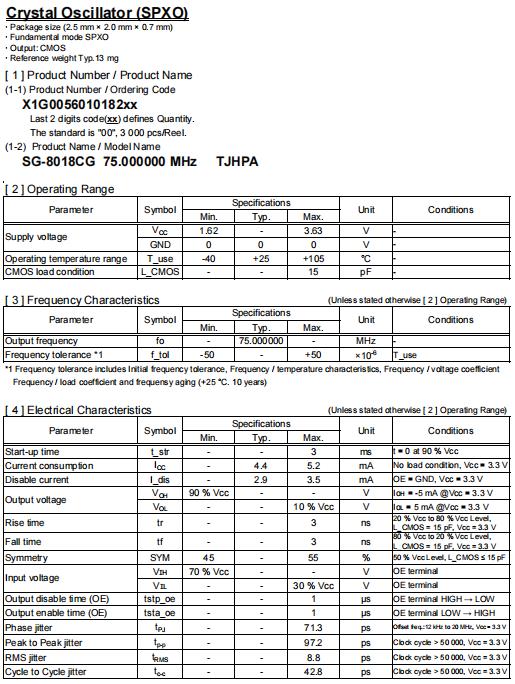

愛普生很高興推出了這款SG-8018CG晶振，石英晶體振蕩器編碼X1G005601018200，頻率75.000000兆赫，輸出WaveCMOS，電源電壓1.62 ~ 3.63 V，尺寸(LxWxH)2.50 x 2.00 x 0.80 mm，工作溫度-40至+105°C，頻率公差±50ppm，額外的OptionsN /OSC類型可編程時鐘OSC，具有非常高的穩定性和可靠性能，非常適用于對設計面積敏感的無線模塊應用，智能穿戴設備設計,SG-8018CG晶振其小體積,高精度,低功耗的特性以及優良的耐熱性與耐環境特性,成為無線模塊應用的最佳之選。

X1G005601018200為何OSC晶振能成為無線模塊應用的甄選?SPXO是市面上最常見的一種有源晶振，是將晶體諧振器與發振電路集成化，不進行溫度補償、溫度控制的最簡單的晶體振蕩器。愛普生晶振目前提供的SPXO產品以貼片晶振為主，規格尺寸最小2.5x2.0mm。
